Show setup code
# !conda install -y -c nvidia/label/cuda-12.8.0 cuda-toolkit
# !pip3 install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu128
# !conda install -y numba
# !conda install -y fastcore -c fastai
from pathlib import Path
import pickle, gzip, math, os, time, shutil
from urllib.request import urlretrieve
import torch
from torch import tensor
import numpy as np
from numba import njit
from numpy import array
from fastcore.test import *
from numba import cuda
torch.set_printoptions(precision= 2 , linewidth= 140 , sci_mode= False )
np.set_printoptions(precision= 2 , linewidth= 140 )
MNIST_URL= 'https://github.com/mnielsen/neural-networks-and-deep-learning/blob/master/data/mnist.pkl.gz?raw=true'
path_data = Path('data' )
path_data.mkdir(exist_ok= True )
path_gz = path_data/ 'mnist.pkl.gz'
if not path_gz.exists(): urlretrieve(MNIST_URL, path_gz)
with gzip.open (path_gz, 'rb' ) as f: ((x_train, y_train), (x_valid, y_valid), _) = pickle.load(f, encoding= 'latin-1' )
x_train,y_train,x_valid,y_valid = map (tensor, (x_train,y_train,x_valid,y_valid))
x_train.shape
Show setup code
torch.manual_seed(1 )
weights = torch.randn(784 ,10 )
bias = torch.zeros(10 )
m1 = x_valid[:5 ]
m2 = weights
m1.shape,m2.shape
(torch.Size([5, 784]), torch.Size([784, 10]))
VIDEO
Results
5-digit Subset
PyTorch @
Op
18.1 μs
Numba Broadcasting
69.2 μs
Einstein Summation
83.1 μs
PyTorch Cuda
108 μs
Numba Cuda
108 μs
PyTorch Broadcasting
203 μs
Numba Dot Product
542 μs
torch.dot
1.19 ms
Element-wise PyTorch Ops
1.49 ms
Nested for-loops
604 ms
Full Dataset (50k images)
PyTorch cuda
541 μs
Numba Cuda
3.91 ms
PyTorch @
Op
5.8 ms
Einstein Summation
5.87 ms
Numba Broadcasting
663 ms
PyTorch Broadcasting
1.26 s
Numba Dot Product
3.71 s

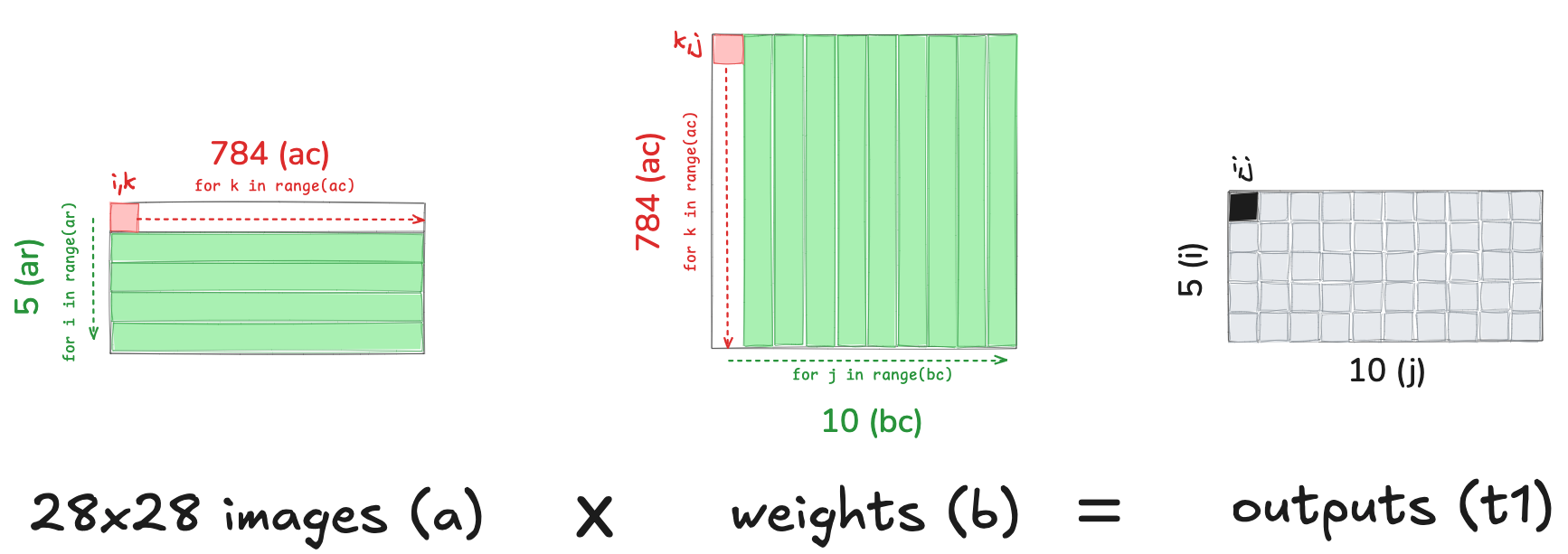

Version 0: Nested For-Loops
ar,ac = m1.shape # n_rows * n_cols
br,bc = m2.shape
(ar,ac),(br,bc)
t1 = torch.zeros(ar, bc)
t1.shape
for i in range (ar): # 5
for j in range (bc): # 10
for k in range (ac): # 784
t1[i,j] += m1[i,k] * m2[k,j]
tensor([[-10.94, -0.68, -7.00, -4.01, -2.09, -3.36, 3.91, -3.44, -11.47, -2.12],
[ 14.54, 6.00, 2.89, -4.08, 6.59, -14.74, -9.28, 2.16, -15.28, -2.68],
[ 2.22, -3.22, -4.80, -6.05, 14.17, -8.98, -4.79, -5.44, -20.68, 13.57],
[ -6.71, 8.90, -7.46, -7.90, 2.70, -4.73, -11.03, -12.98, -6.44, 3.64],
[ -2.44, -6.40, -2.40, -9.04, 11.18, -5.77, -8.92, -3.79, -8.98, 5.28]])
def matmul(a,b):
(ar,ac),(br,bc) = a.shape,b.shape
c = torch.zeros(ar, bc)
for i in range (ar):
for j in range (bc):
for k in range (ac): c[i,j] += a[i,k] * b[k,j]
return c
CPU times: user 675 ms, sys: 0 ns, total: 675 ms
Wall time: 674 ms

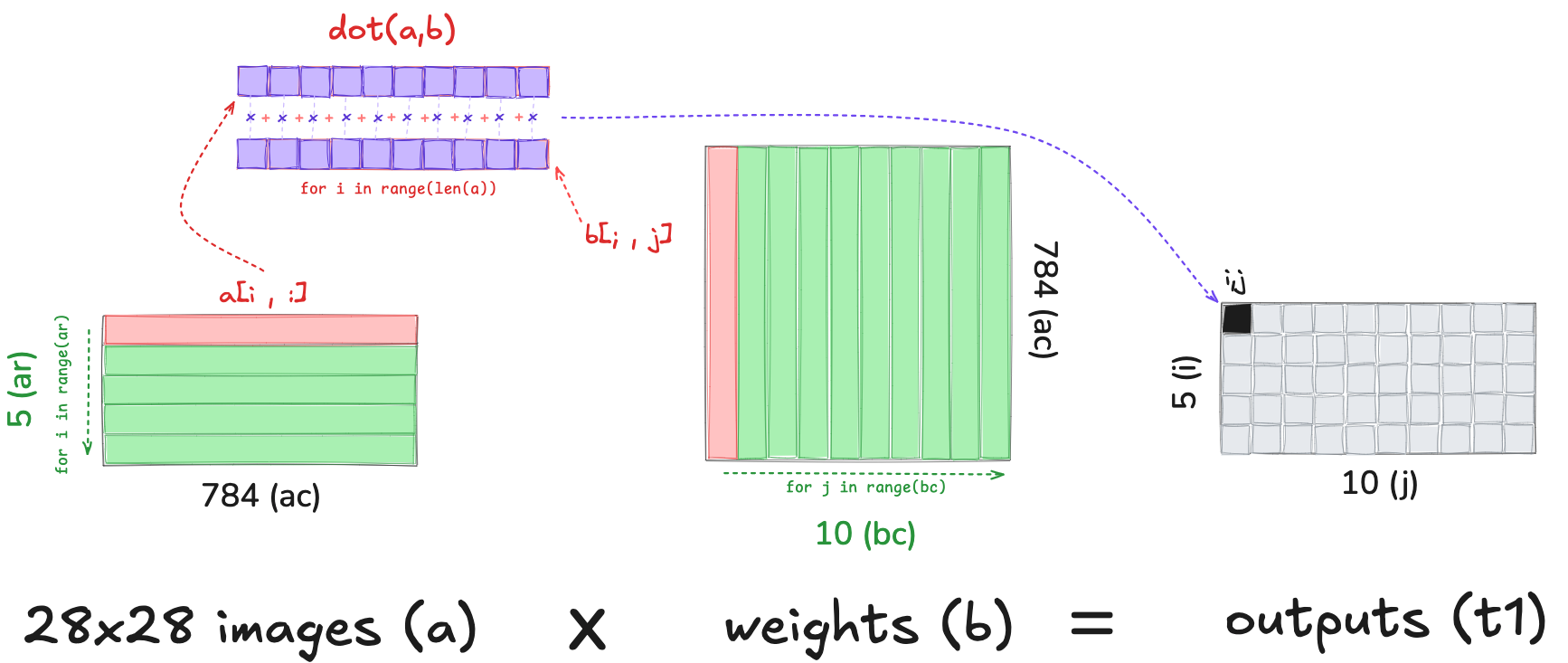

Version 1: Numba Dot Product
Replacing the inner-most for-loop with a numba dot-product implementation.
@njit
def dot(a,b):
res = 0.
for i in range (len (a)): res+= a[i]* b[i]
return res
% time dot(array([1. ,2 ,3 ]),array([2. ,3 ,4 ]))
CPU times: user 124 ms, sys: 0 ns, total: 124 ms
Wall time: 123 ms
% time dot(array([1. ,2 ,3 ]),array([2. ,3 ,4 ]))
CPU times: user 26 μs, sys: 2 μs, total: 28 μs
Wall time: 32.4 μs
def matmul(a,b):
(ar,ac),(br,bc) = a.shape,b.shape
c = torch.zeros(ar, bc)
for i in range (ar):
for j in range (bc): c[i,j] = dot(a[i,:], b[:,j])
return c
m1a,m2a = m1.numpy(),m2.numpy()
test_close(t1,matmul(m1a, m2a))
% timeit - n 50 matmul(m1a,m2a)
495 μs ± 39.4 μs per loop (mean ± std. dev. of 7 runs, 50 loops each)
Version 2: Element-wise Operations
def matmul(a,b):
(ar,ac),(br,bc) = a.shape,b.shape
c = torch.zeros(ar, bc)
for i in range (ar):
for j in range (bc): c[i,j] = (a[i,:] * b[:,j]).sum ()
return c
test_close(t1,matmul(m1, m2))
% timeit - n 50 _= matmul(m1, m2)
1.48 ms ± 354 μs per loop (mean ± std. dev. of 7 runs, 50 loops each)
Version 3: torch.dot
def matmul(a,b):
(ar,ac),(br,bc) = a.shape,b.shape
c = torch.zeros(ar, bc)
for i in range (ar):
for j in range (bc): c[i,j] = torch.dot(a[i,:], b[:,j])
return c
test_close(t1,matmul(m1, m2))
% timeit - n 50 _= matmul(m1, m2)
1.23 ms ± 380 μs per loop (mean ± std. dev. of 7 runs, 50 loops each)

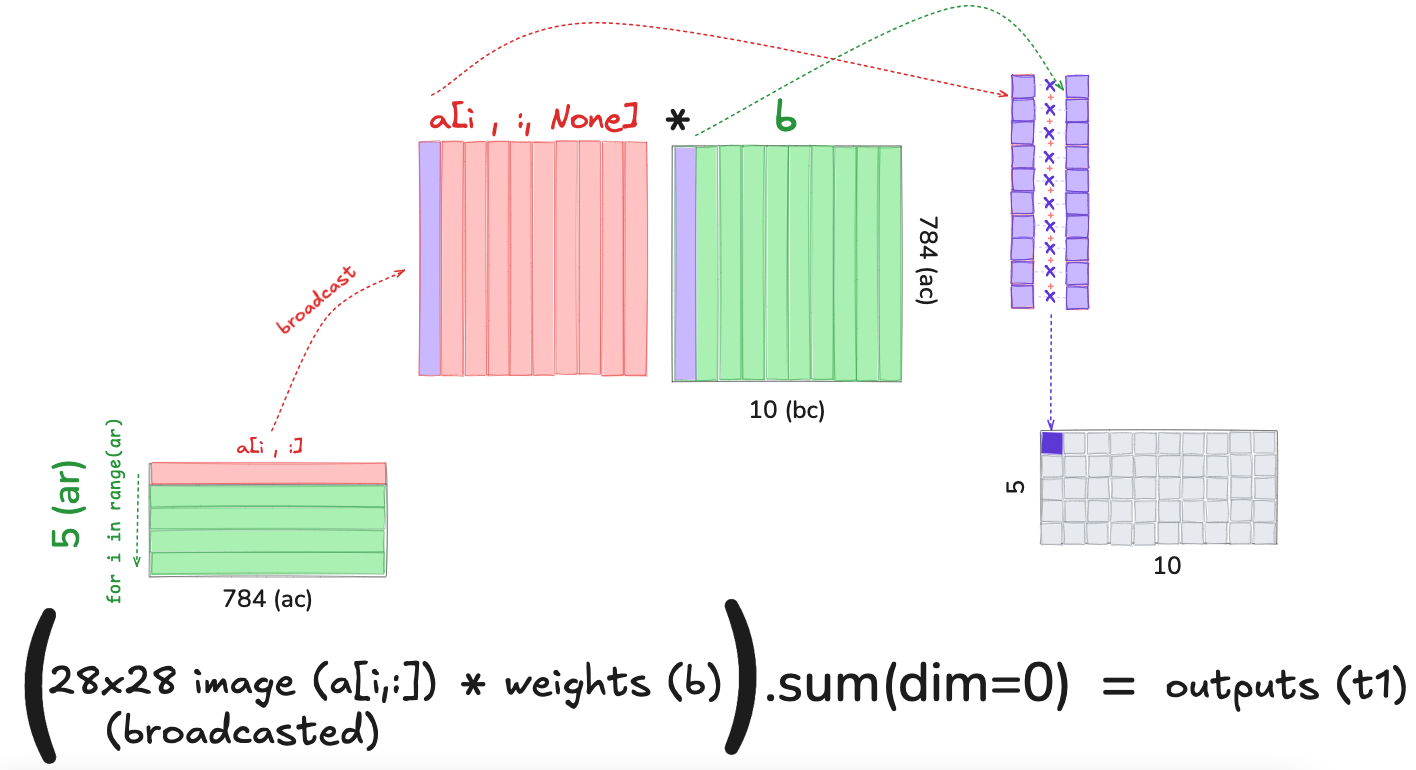

Version 4: PyTorch Broadcasting
def matmul(a,b):
(ar,ac),(br,bc) = a.shape,b.shape
c = torch.zeros(ar, bc)
for i in range (ar): c[i] = (a[i,:,None ] * b).sum (dim= 0 )
return c
test_close(t1,matmul(m1, m2))
% timeit - n 50 _= matmul(m1, m2)
314 μs ± 92.1 μs per loop (mean ± std. dev. of 7 runs, 50 loops each)
Version 5: Numba Broadcasting
@njit
def matmul(a,b):
(ar,ac),(br,bc) = a.shape,b.shape
c = np.zeros((ar, bc))
for i in range (ar): c[i] = (a[i,:,None ] * b).sum (axis= 0 )
return c
test_close(t1,matmul(m1a, m2a))
% timeit - n 50 _= matmul(m1a, m2a)
69 μs ± 1.96 μs per loop (mean ± std. dev. of 7 runs, 50 loops each)

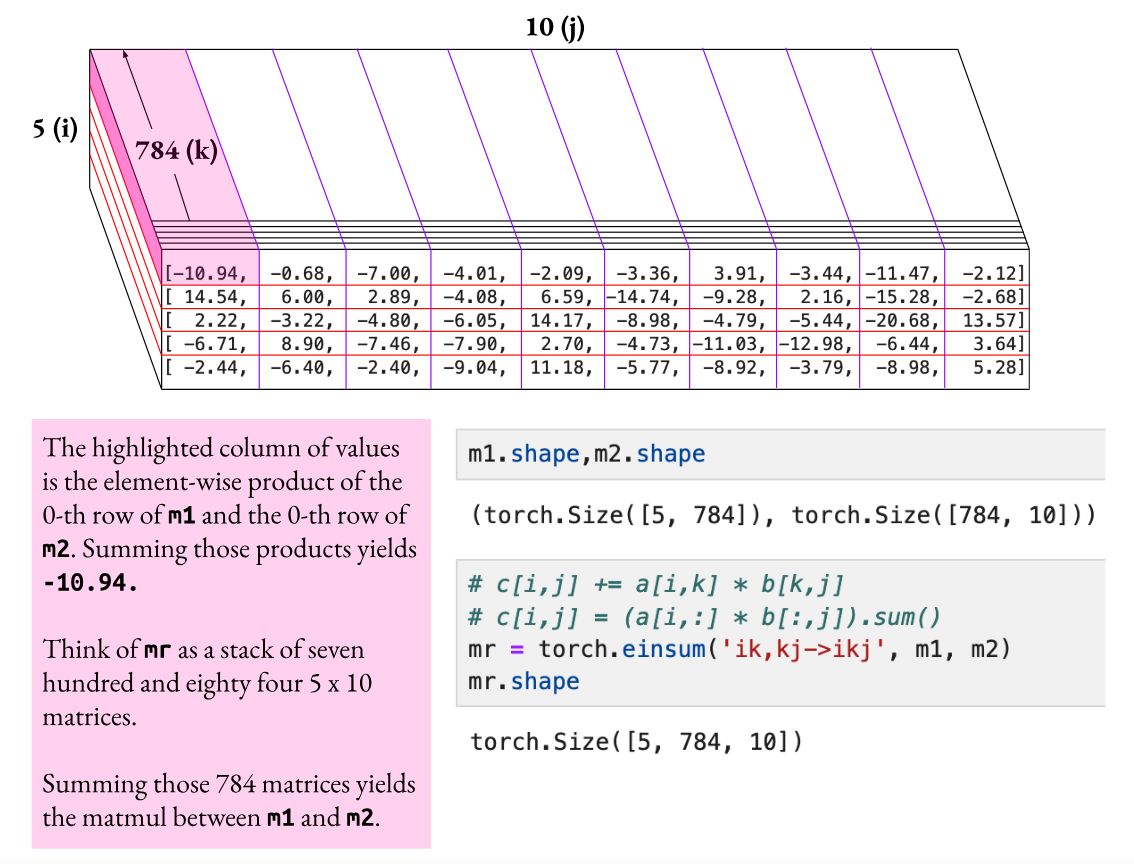

Version 6: Einstein Summation
def matmul(a,b): return torch.einsum('ik,kj->ij' , a, b)
test_close(t1,matmul(m1, m2))
% timeit - n 50 _= matmul(m1, m2)
80.8 μs ± 4.18 μs per loop (mean ± std. dev. of 7 runs, 50 loops each)
Version 7: PyTorch @
Operator
16.7 μs ± 1.96 μs per loop (mean ± std. dev. of 7 runs, 50 loops each)
Version 8: Numba CUDA
@cuda.jit
def matmul(a,b,c):
i, j = cuda.grid(2 )
if i < c.shape[0 ] and j < c.shape[1 ]:
tmp = 0.
for k in range (a.shape[1 ]): tmp += a[i, k] * b[k, j]
c[i,j] = tmp
def launch_kernel(kernel, grid_x, grid_y, * args, ** kwargs):
for i in range (grid_x):
for j in range (grid_y): kernel((i,j), * args, ** kwargs)
r = np.zeros(t1.shape)
m1g,m2g,rg = map (cuda.to_device, (m1,m2,r))
m1g.shape, m2g.shape, rg.shape
((5, 784), (784, 10), (5, 10))
TPB = 16
rr,rc = r.shape
blockspergrid = (math.ceil(rr / TPB), math.ceil(rc / TPB))
blockspergrid
matmul[blockspergrid, (TPB,TPB)](m1g,m2g,rg)
r = rg.copy_to_host()
test_close(t1, r, eps= 1e-3 )
/mnt/my4tb/vishal_data/miniconda3/envs/course-numba/lib/python3.10/site-packages/numba/cuda/dispatcher.py:536: NumbaPerformanceWarning: Grid size 1 will likely result in GPU under-utilization due to low occupancy.
warn(NumbaPerformanceWarning(msg))
%% timeit - n 10
matmul[blockspergrid, (TPB,TPB)](m1g,m2g,rg)
r = rg.copy_to_host()
245 μs ± 47.4 μs per loop (mean ± std. dev. of 7 runs, 10 loops each)
Version 9: PyTorch .cuda
m1c,m2c = m1.cuda(),m2.cuda()
r= (m1c@ m2c).cpu()
test_close(t1, r)
% timeit - n 10 r= (m1c@ m2c).cpu()
113 μs ± 26.4 μs per loop (mean ± std. dev. of 7 runs, 10 loops each)
Comparing Fastest Versions on Full Dataset
PyTorch cuda
541 μs
Numba Cuda
3.91 ms
PyTorch @
Op
5.8 ms
Einstein Summation
5.87 ms
Numba Broadcasting
663 ms
PyTorch Broadcasting
1.26 s
Numba Dot Product
3.71 s
Numba Dot Product
def matmul(a,b):
(ar,ac),(br,bc) = a.shape,b.shape
c = torch.zeros(ar, bc)
for i in range (ar):
for j in range (bc): c[i,j] = dot(a[i,:], b[:,j])
return c
x_train_a,weights_a = x_train.numpy(),weights.numpy()
% timeit _ = matmul(x_train_a, weights_a)
3.71 s ± 20.7 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)
PyTorch Broadcasting
def matmul(a,b):
(ar,ac),(br,bc) = a.shape,b.shape
c = torch.zeros(ar, bc)
for i in range (ar): c[i] = (a[i,:,None ] * b).sum (dim= 0 )
return c
% timeit _ = matmul(x_train, weights)
1.26 s ± 1.42 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)
x_train.shape, weights.shape
(torch.Size([50000, 784]), torch.Size([784, 10]))
% timeit _ = matmul(x_train.cuda(), weights.cuda())
2.86 s ± 4.5 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)
Interestingly, putting the tensors on the GPU and then broadcasting is slower than the CPU.
Numba Cuda
@cuda.jit
def matmul(a,b,c):
i, j = cuda.grid(2 )
if i < c.shape[0 ] and j < c.shape[1 ]:
tmp = 0.
for k in range (a.shape[1 ]): tmp += a[i, k] * b[k, j]
c[i,j] = tmp
r = np.zeros((50000 , 10 ))
m1g,m2g,rg = map (cuda.to_device, (x_train,weights,r))
TPB = 16
rr,rc = r.shape
blockspergrid = (math.ceil(rr / TPB), math.ceil(rc / TPB))
blockspergrid
%% timeit - n 10
matmul[blockspergrid, (TPB,TPB)](m1g,m2g,rg)
r = rg.copy_to_host()
3.91 ms ± 68.6 μs per loop (mean ± std. dev. of 7 runs, 10 loops each)
PyTorch cuda
m1c,m2c = x_train.cuda(),weights.cuda()
% timeit - n 10 r= (m1c@ m2c).cpu()
541 μs ± 6.82 μs per loop (mean ± std. dev. of 7 runs, 10 loops each)
Einstein Summation
def matmul(a,b): return torch.einsum('ik,kj->ij' , a, b)
% timeit - n 10 _= matmul(x_train, weights)
5.87 ms ± 229 μs per loop (mean ± std. dev. of 7 runs, 10 loops each)
Numba Broadcasting
@njit
def matmul(a,b):
(ar,ac),(br,bc) = a.shape,b.shape
c = np.zeros((ar, bc))
for i in range (ar): c[i] = (a[i,:,None ] * b).sum (axis= 0 )
return c
_= matmul(x_train.numpy(), weights.numpy())
% timeit _= matmul(x_train.numpy(), weights.numpy())
663 ms ± 378 μs per loop (mean ± std. dev. of 7 runs, 1 loop each)
PyTorch @
Op
% timeit - n 10 _= x_train@ weights
5.8 ms ± 212 μs per loop (mean ± std. dev. of 7 runs, 10 loops each)
Comparing 5-digit Subset to Full Dataset Times
PyTorch cuda
541 μs
108 μs (4)
Numba Cuda
3.91 ms
108 μs (4)
PyTorch @
Op
5.8 ms
18.1 μs (1)
Einstein Summation
5.87 ms
83.1 μs (3)
Numba Broadcasting
663 ms
69.2 μs (2)
PyTorch Broadcasting
1.26 s
203 μs (6)
Numba Dot Product
3.71 s
542 μs (7)
Closing Thoughts
I initially ran into some problems on Colab when implementing @cuda.jit
(an error about compute compatibility) so I switched to an RTX 3090 machine and installed the following, which let me successfully run this notebook:
conda install -y -c nvidia/label/cuda-12.8.0 cuda-toolkit
pip3 install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu128
conda install -y numba
conda install -y fastcore -c fastai
The glaring takeaway from this exercise is that these methods all scale differently. For the 5-digit subset, PyTorch cuda
was about 9 times slower than PyTorch CPU (when using the @
operator). Numba cuda and PyTorch cuda
were tied for the small subset, but PyTorch cuda
was 8 times faster for the larger dataset. I don’t yet understand why these differences exist, so that’s something I’ll keep an eye out for as I learn more about how GPUs work!
