Understanding the Mean Shift Clustering Algorithm (and PyTorch Broadcasting)

python
machine learning
This post walks through a Python implementation of the Mean Shift Clustering algorithm, detailing the journey from a basic concept to a GPU-optimized version, with a key focus on understanding and visualizing PyTorch broadcasting for batch processing. We explore how manipulating tensor shapes is crucial for performance and uncover insights into how 3D tensors can be intuitively understood as grouped 2D tensors.
Author

Vishal Bakshi

Published

May 31, 2025

import math, matplotlib.pyplot as plt, operator, torch
from functools import partial
from torch.distributions.multivariate_normal import MultivariateNormal
from torch import tensor
torch.manual_seed(42)
torch.set_printoptions(precision=3, linewidth=140, sci_mode=False)

Background

In this blog post I’ll walk through the Mean Shift Clustering algorithm as introduced in Lesson 12 of the fastai course (Part 2).

The algorithm:

  • For each data point x in the sample X, find the distance between that point x and every other point in X
  • Create weights for each point in X by using the Gaussian kernel of that point’s distance to x
  • This weighting approach penalizes points further away from x
  • The rate at which the weights fall to zero is determined by the bandwidth, which is the standard deviation of the Gaussian
  • Update x as the weighted average of all other points in X, weighted based on the previous step

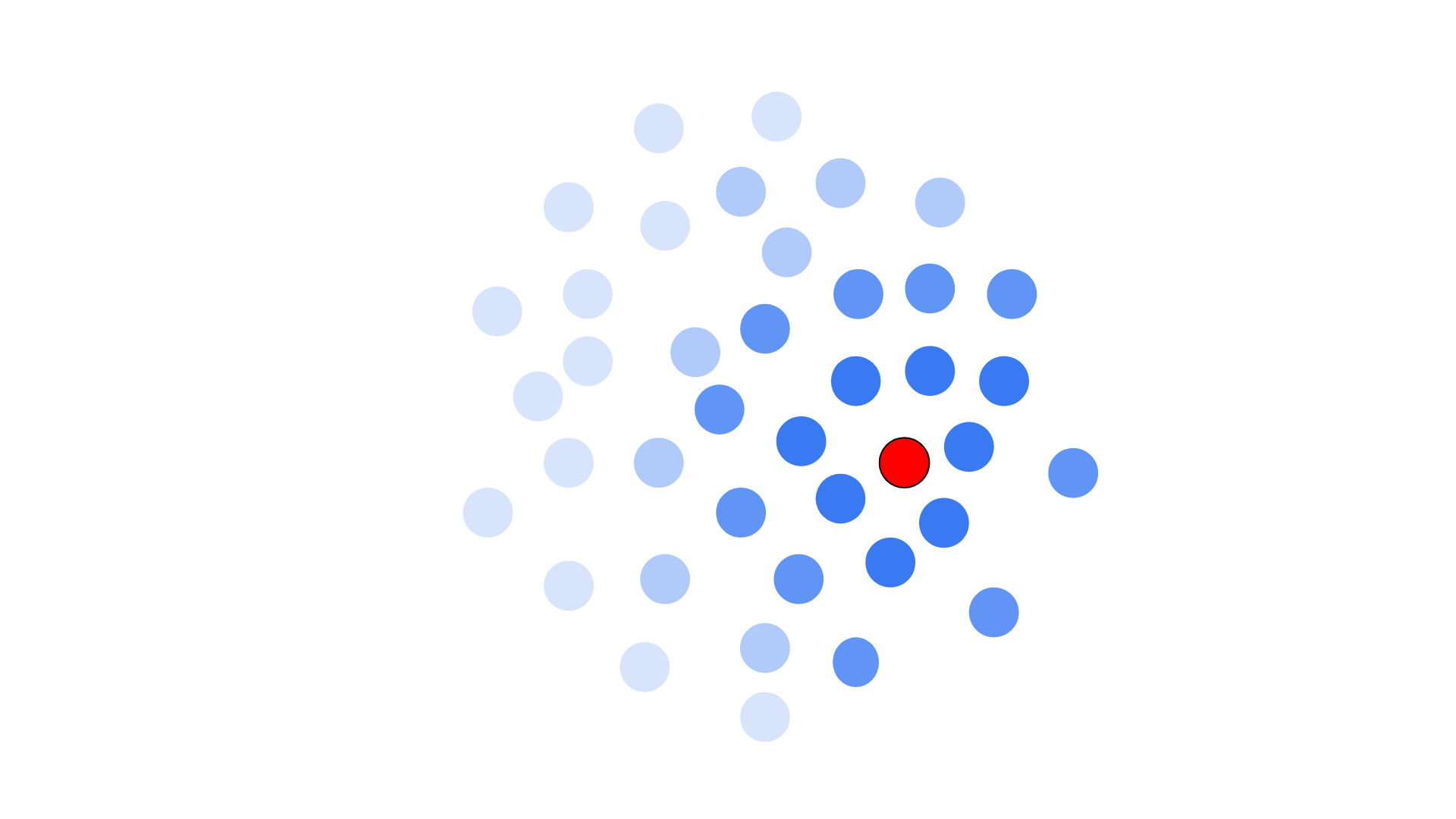

Conceptual visual showing the mean shift clustering algorithm weighting by distance. The red point is x.

Generating Clearly Clustered Data

An important point: we start by creating fake data such that it is knowingly clustered around a set of centroids we can then compare to the final clustering result.

n_clusters=6
n_samples =250
centroids = torch.rand(n_clusters, 2)*70-35
centroids.shape
torch.Size([6, 2])
centroids
tensor([[ 26.759,  29.050],
        [ -8.200,  32.151],
        [ -7.669,   7.063],
        [-17.040,  20.555],
        [ 30.854, -25.677],
        [ 30.422,   6.551]])

We’ll generate data around these 6 centroids using PyTorch’s MultivariateNormal which:

Creates a multivariate normal (also called Gaussian) distribution parameterized by a mean vector and a covariance matrix.

The covariance matrix in our case is a diagonal matrix with 5s on the diagonal.

We generate 250 samples for each mean vector (centroid).

def sample(m): return MultivariateNormal(m, torch.diag(tensor([5.,5.]))).sample((n_samples,))
torch.diag(tensor([5.,5.]))
tensor([[5., 0.],
        [0., 5.]])

From Gemini this covariance matrix shows:

  • No Correlation: The two variables are uncorrelated (covariance is 0.0). For a MultivariateNormal distribution, this implies they are independent.
  • Equal Variance: Both variables have the same variance of 5.0.
  • Shape: If used in a 2D MultivariateNormal distribution, this will produce a circular cloud of data points, equally spread along both the X and Y axes.
coords = MultivariateNormal(centroids[0], torch.diag(tensor([5.,5.]))).sample((n_samples,))
coords.shape
torch.Size([250, 2])

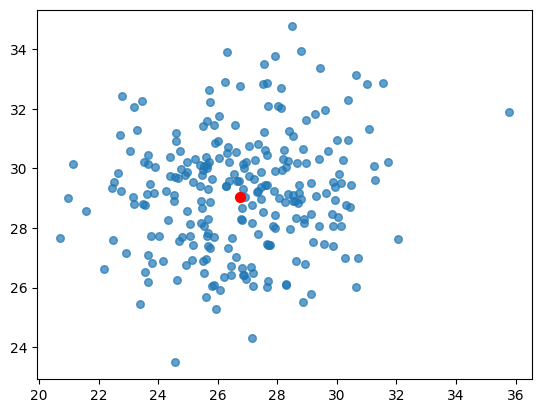

We see how the MultivariateNormal distribution samples are spread out in a circular shape around the mean, with the density of samples decreasing as you move further away from the centroid.

plt.scatter(coords[:,0], coords[:,1], alpha=0.7, s=30);
plt.scatter(centroids[0][0], centroids[0][1], c = 'red', s=50);
ax = plt.gca() # Get current axes
ax.set_aspect('equal', adjustable='box')

We sample from the MultivariateNormal distribution for all six of our centroids and concatenate the result.

slices = [sample(c) for c in centroids]
data = torch.cat(slices)
data.shape
torch.Size([1500, 2])
def plot_data(centroids, data, n_samples, ax=None):
    if ax is None: _,ax = plt.subplots()
    ax.set_aspect('equal', adjustable='box')
    for i, centroid in enumerate(centroids):
        samples = data[i*n_samples:(i+1)*n_samples]
        ax.scatter(samples[:,0], samples[:,1], s=1)
        ax.plot(*centroid, markersize=8, marker="x", color='k', mew=2)

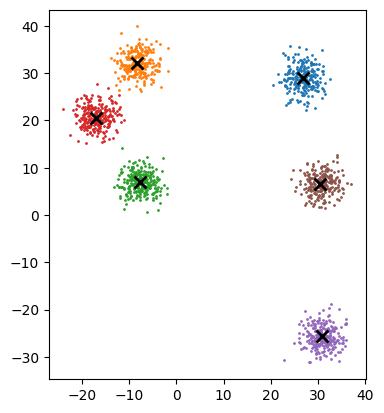

plot_data(centroids, data, n_samples);

Generating Sample Weights

With our data generated, we’ll now prepare for the third step in the algorithm: create weights.

Create weights for each point in X by using the Gaussian kernel of that point’s distance to x

We’ll start by defining a function which takes some distance d and some bandwidth bw and returns the gaussian normal output given these two inputs. This output will be our weights:

def gaussian(d, bw): return torch.exp(-0.5*((d/bw))**2) / (bw*math.sqrt(2*math.pi))

(Wikipedia) the probability density function of the normal distribution is given by:

\[f(x)={\frac {1}{\sqrt {2\pi \sigma ^{2}}}}e^{-{\frac {(x-\mu )^{2}}{2\sigma ^{2}}}}\]

In our case, d (the distance from a point in X to another point in X) is equivalent in this function to \(x-\mu\), and bandwidth bw is the standard deviation \(\sigma\).

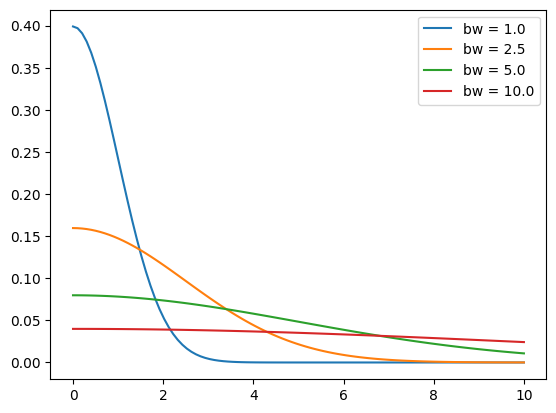

As bandwidth increases, the gaussian distribution flattens out (i.e. weights decay slower as distance increases).

x = torch.linspace(0,10,100)
plt.plot(x, gaussian(x, bw=1.0), label='bw = 1.0')
plt.plot(x, gaussian(x, bw=2.5), label='bw = 2.5')
plt.plot(x, gaussian(x, bw=5.0), label='bw = 5.0')
plt.plot(x, gaussian(x, bw=10.0), label='bw = 10.0')
plt.legend();

We can also try to use a simpler linear function for our weights.

def tri(d, i): return (-d+i).clamp_min(0)/i

Mathematically, this calculates max(0, (i - d) / i) which is equivalent to max(0, 1 - d / i)

clamp_min ensures that the value of -d+i does not go below 0. i becomes the d-intercept.

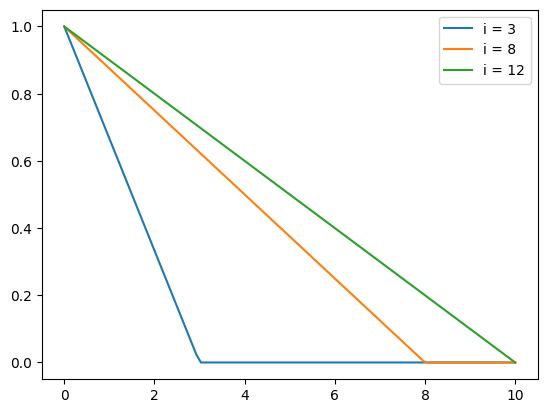

As i increases, the slope decreases, and weights decay slower as distance increases.

x = torch.linspace(0,10,100)
plt.plot(x, tri(x,i=3), label='i = 3')
plt.plot(x, tri(x,i=8), label='i = 8')
plt.plot(x, tri(x,i=10), label='i = 12')
plt.legend();

Implementing the Full Algorithm

  • For each data point x in the sample X, find the distance between that point x and every other point in X (d = f(x-X))
  • Create weights for each point in X by using the Gaussian kernel of that point’s distance to x (weights = gaussian(d))
  • Update x as the weighted average of all other points in X, weighted based on the previous step (x = weighted_avg(weights, X))

Since we are going to update the data after each step of the algorithm, we clone the data to start. As a reminder, these 1500 coordinates come from 250 MultivariateNormal samples given 6 centroids as the mean.

X = data.clone()
x = X[0]
x
tensor([29.764, 26.161])
X.shape, x.shape
(torch.Size([1500, 2]), torch.Size([2]))

We now calculate the distance between that point x and every other point in X. Since x and X share a dimension 2, we can just subtract and PyTorch will use broadcasting.

(x-X).shape
torch.Size([1500, 2])
(x-X)[0] # subtracting the first point from itself
tensor([0., 0.])
x
tensor([29.764, 26.161])
X[:5]
tensor([[29.764, 26.161],
        [28.472, 30.493],
        [27.549, 23.130],
        [23.500, 26.879],
        [27.327, 28.650]])
(x-X)[:5]
tensor([[ 0.000,  0.000],
        [ 1.292, -4.333],
        [ 2.215,  3.030],
        [ 6.264, -0.718],
        [ 2.437, -2.489]])

We’ll use Euclidean distance, which is the square root of the sum (across the columns, or rather across coordinates) of the difference in coordinates squared.

((x-X)**2).shape
torch.Size([1500, 2])
((x-X)**2)[:5]
tensor([[ 0.000,  0.000],
        [ 1.668, 18.772],
        [ 4.906,  9.184],
        [39.239,  0.515],
        [ 5.939,  6.196]])

Summing across the columns to get \(x^2+y^2\).

((x-X)**2).sum(1).shape
torch.Size([1500])
((x-X)**2).sum(1)[:5]
tensor([ 0.000, 20.440, 14.089, 39.754, 12.134])
dist = ((x-X)**2).sum(1).sqrt()
dist.shape
torch.Size([1500])
dist[:5]
tensor([0.000, 4.521, 3.754, 6.305, 3.483])

Since we are performing elementwise multiplication following by a summation, we can use Einstein Summation:

torch.einsum('ij,ij->i', x-X, x-X).sqrt()
tensor([ 0.000,  4.521,  3.754,  ..., 21.305, 21.850, 21.958])

We can also use matrix multiplication, though IIUC, you have to pluck out the values on the resulting matrix’s diagonal to get the elementwise product between x-X and itself.

(x-X).shape, (x-X).T.shape
(torch.Size([1500, 2]), torch.Size([2, 1500]))
res = (x-X) @ (x-X).T
res.shape
torch.Size([1500, 1500])
torch.diag(res)
tensor([  0.000,  20.440,  14.089,  ..., 453.898, 477.408, 482.169])
torch.diag(res).sqrt()
tensor([ 0.000,  4.521,  3.754,  ..., 21.305, 21.850, 21.958])

We now create weights for each point in X by using the Gaussian kernel of that point’s distance to x.

weight = gaussian(dist, 2.5)
weight
tensor([    0.160,     0.031,     0.052,  ...,     0.000,     0.000,     0.000])

We have 1500 weights, one for each distance between our current point x and all of the points in X.

weight.shape
torch.Size([1500])

We can now move on to the last step in the algorithm: update x as the weighted average of all other points in X, weighted based on the previous step.

The weighted average is the elementwise product of the weights and X, summed down the rows (two get 2 coordinates) and then divided by the sum of the weights.

Starting from the last dimension, weight and X do not have compatible dimensions (1500 is not 2 or 1), so we have to add a unit axis to weight to allow for broadcasting.

X.shape
torch.Size([1500, 2])
weight*X
RuntimeError: The size of tensor a (1500) must match the size of tensor b (2) at non-singleton dimension 1
weight[:,None].shape
torch.Size([1500, 1])
weight[:,None]*X
tensor([[    4.750,     4.175],
        [    0.886,     0.948],
        [    1.424,     1.196],
        ...,
        [    0.000,     0.000],
        [    0.000,     0.000],
        [    0.000,     0.000]])

We then sum down the rows to get two coordinates:

(weight[:,None]*X).sum(0)
tensor([296.880, 291.612])

This is the same as applying the weights to each column separately:

(weight * X[:,0]).sum(), (weight * X[:,1]).sum()
(tensor(296.880), tensor(291.612))

We then divide by the sum of the weights to get our final, updated x:

(weight[:,None]*X).sum(0)/weight.sum()
tensor([28.118, 27.619])

Wrapping this up into a function for each x in X we calculate the distance between x and all points in X, calculate the weights for those distances and replace x with the weighted average of those weights and all the points.

def one_update(X):
    for i, x in enumerate(X):
        dist = torch.sqrt(((x-X)**2).sum(1))
        weight = gaussian(dist, 2.5)
        X[i] = (weight[:,None]*X).sum(0)/weight.sum()
X = data.clone()
x = X[0]
x
tensor([29.764, 26.161])
one_update(X)
X[0]
tensor([28.118, 27.619])

We can now wrap up into a meanshift function where it performs n such updates.

def meanshift(data, n=5):
    X = data.clone()
    for it in range(n): one_update(X)
    return X
%time X=meanshift(data)
CPU times: user 1.39 s, sys: 3.12 ms, total: 1.4 s
Wall time: 1.42 s

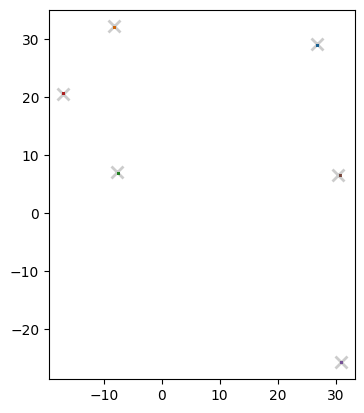

We can now see that in 5 iterations, the weight updates have resulted in the points to converge at the original centroids!

def plot_data(centroids, data, n_samples, ax=None, alpha=4):
    if ax is None: _,ax = plt.subplots()
    ax.set_aspect('equal', adjustable='box') # Add this line
    for i, centroid in enumerate(centroids):
        samples = data[i*n_samples:(i+1)*n_samples]
        ax.plot(*centroid, markersize=8, marker="x", color='k', mew=2, alpha=1 - alpha*0.2)
        ax.scatter(samples[:,0], samples[:,1], s=1)
plot_data(centroids, X, n_samples)

Animating the Algorithm

from matplotlib.animation import FuncAnimation
from IPython.display import HTML
def do_one(d):
    if d: one_update(X)
    ax.clear()
    plot_data(centroids, X, n_samples, ax=ax, alpha=d)

We can visualize the “gravity” of the cluster centroids as the data points are “pulled in” via the weighted average.

X = data.clone()
fig,ax = plt.subplots()
ani = FuncAnimation(fig, do_one, frames=5, interval=500, repeat=False)
plt.close()
HTML(ani.to_jshtml())

Running the Algorithm on the GPU

Instead of updating one data point at a time:

def one_update(X):
    for i, x in enumerate(X):
        dist = torch.sqrt(((x-X)**2).sum(1))
        weight = gaussian(dist, 2.5)
        X[i] = (weight[:,None]*X).sum(0)/weight.sum()

What if we updates one batch at a time on the GPU?

bs=5
X = data.clone()
x = X[:bs]
x.shape,X.shape
(torch.Size([5, 2]), torch.Size([1500, 2]))

To calculate the distance between the two, we have to first subtract them. To do this subtraction, the current dimensions won’t work (as 1500 is not compatible with 5):

x-X
RuntimeError: The size of tensor a (5) must match the size of tensor b (1500) at non-singleton dimension 0

Let’s think about what we are trying to do here. We want to subtract from each point in the batch x every point in the full set X. So each pair of 1500 coordinates need to be subtracted from each pair of 5 coordinates.

I find it easier to start with “just making the dimensions work” for broadcasting.

x[None].shape, X[:,None].shape
(torch.Size([1, 5, 2]), torch.Size([1500, 1, 2]))

Going right to left: the last dimension matches (2), 1 is compatible with 5 and 1 is compatible with 1500. We can subtract these two tensors.

(x[None]-X[:,None]).shape
torch.Size([1500, 5, 2])

The result is 1500 sets of 5 coordinate pairs. The 5 coordinate pairs are the difference between the coordinates in batch x and a coordinate in X.

Checking this manually, let’s take the first point in x.

x[0,:].shape
torch.Size([2])

The dimension of 2 is compatible with the last dimension of X so we can subtract these shapes directly.

(x[0,:] - X).shape
torch.Size([1500, 2])

This difference is equal to the first item of the batch in the broadcasted version.

((x[0,:] - X) == (x[None]-X[:,None])[:,0,:]).float().mean()
tensor(1.)

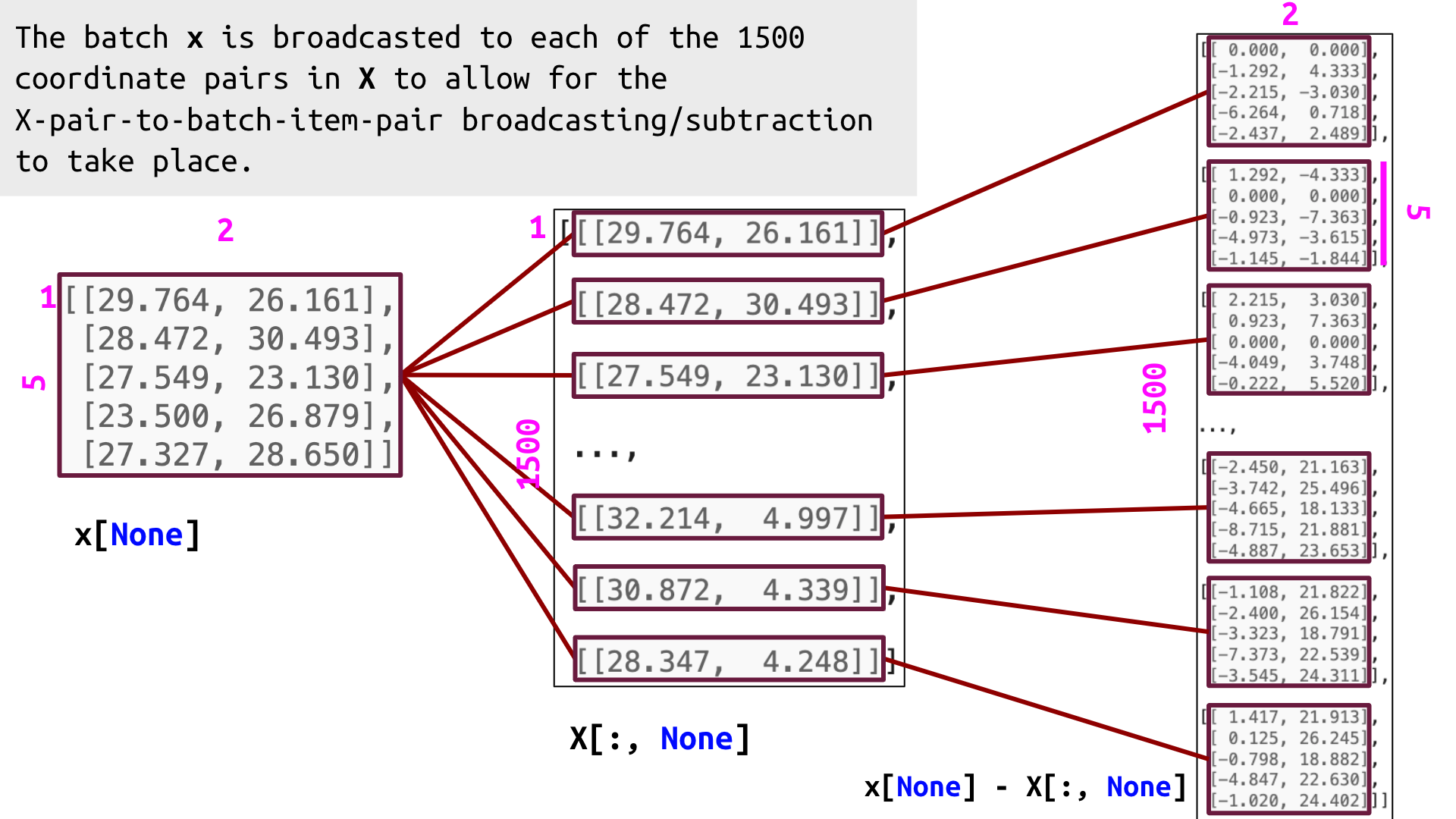

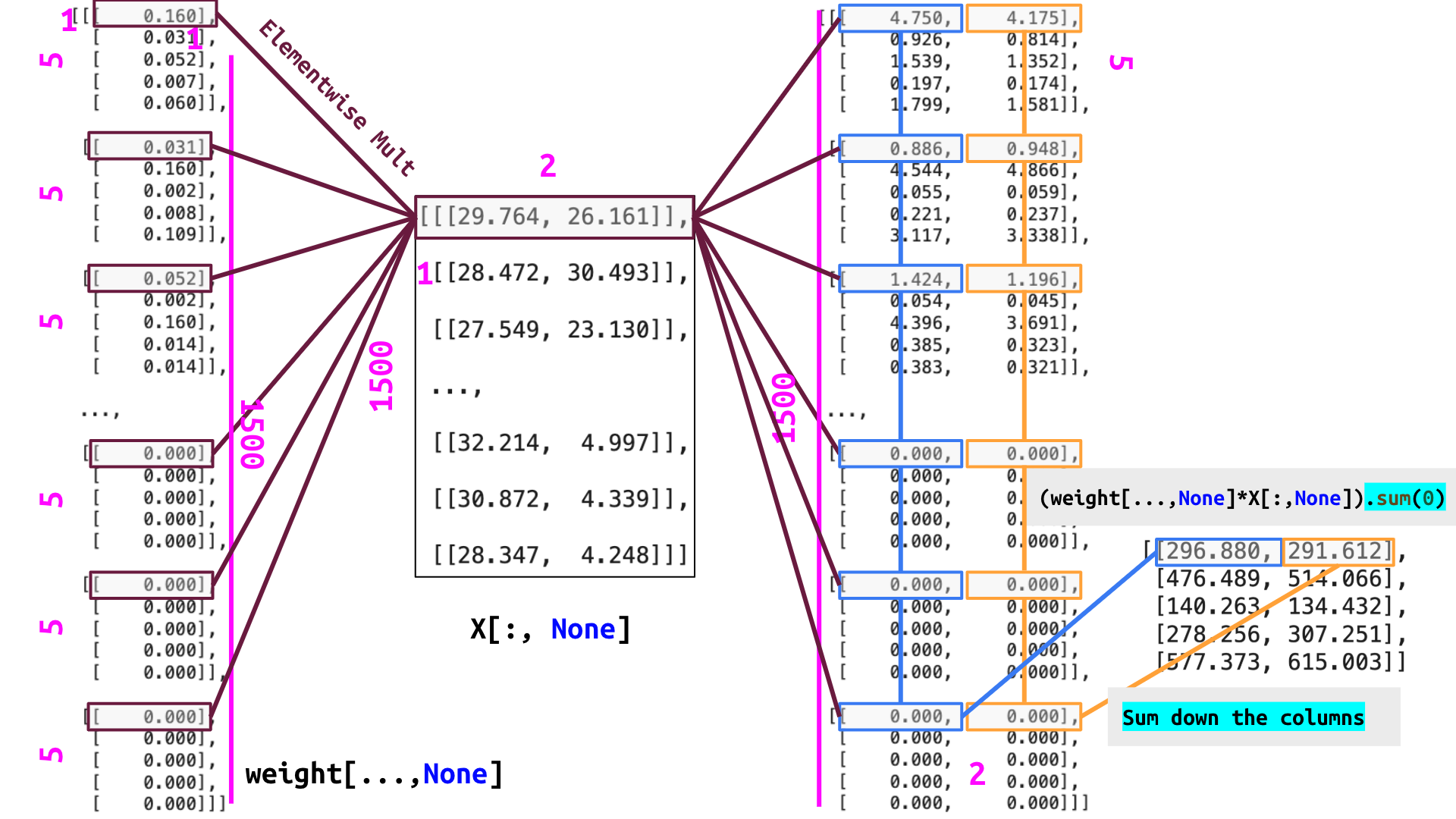

With that under my belt, I’ll now visualize the broadcasting operation to better understand why the dimensions “just work”.

Adding the unit axis to x (our batch of 5 coordinates) as the first dimension is not as intuitive visually as it just adds a pair of brackets to the outside of the 5 coordinates. However, what this does is allow the set of 5 coordinates (as a group) to be broadcasted across another dimension of any size.

x
tensor([[29.764, 26.161],
        [28.472, 30.493],
        [27.549, 23.130],
        [23.500, 26.879],
        [27.327, 28.650]])
x[None]
tensor([[[29.764, 26.161],
         [28.472, 30.493],
         [27.549, 23.130],
         [23.500, 26.879],
         [27.327, 28.650]]])

Adding the unit axis as the second dimension to X (our full set of 1500 coordinates) is more visually intuitive—we’ve added a pair of brackets around each pair of coordinates, making them broadcastable to any other dimension.

X
tensor([[29.764, 26.161],
        [28.472, 30.493],
        [27.549, 23.130],
        ...,
        [32.214,  4.997],
        [30.872,  4.339],
        [28.347,  4.248]])
X[:,None]
tensor([[[29.764, 26.161]],

        [[28.472, 30.493]],

        [[27.549, 23.130]],

        ...,

        [[32.214,  4.997]],

        [[30.872,  4.339]],

        [[28.347,  4.248]]])

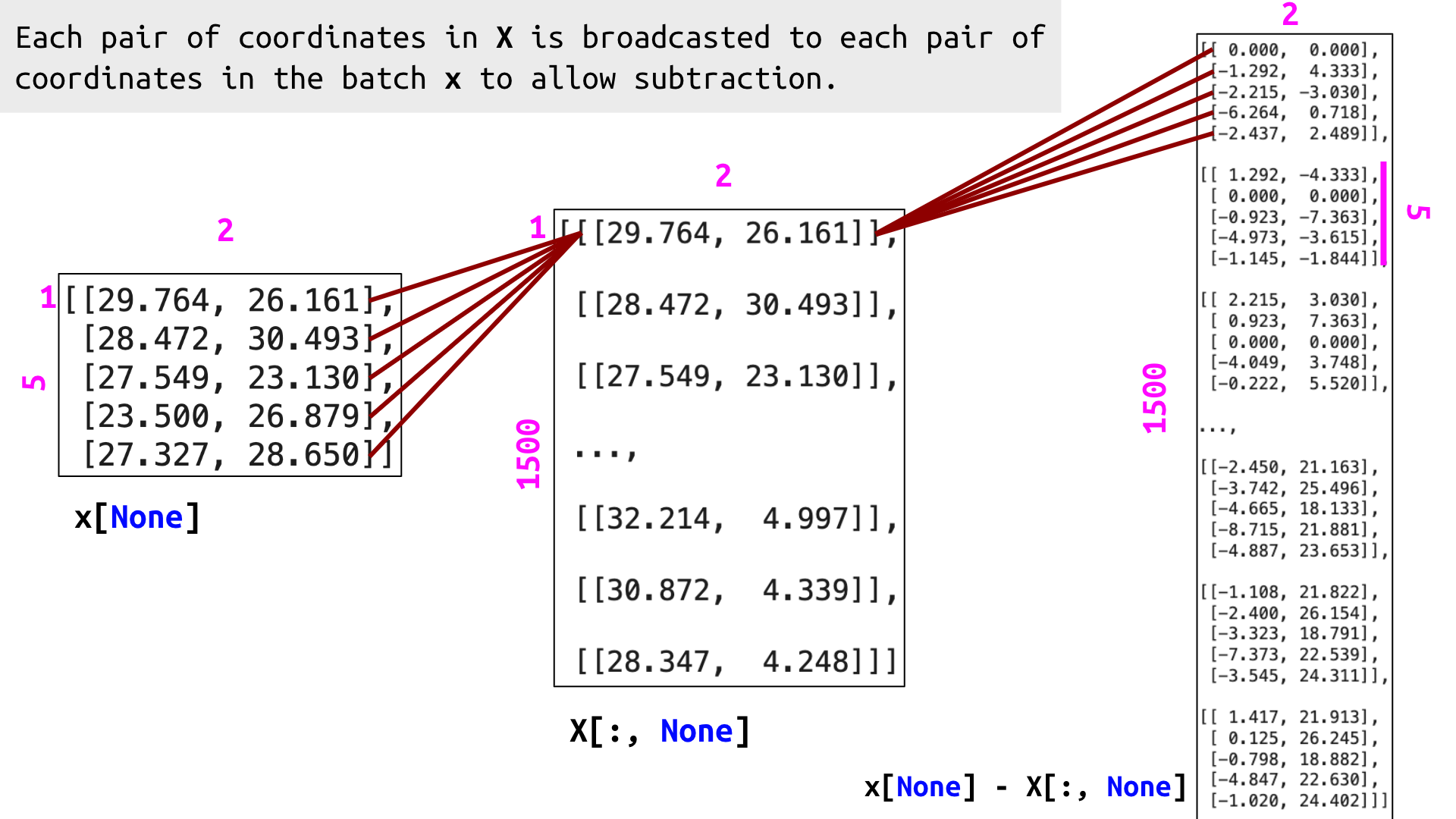

So our batch of 5 coordinates x can now be broadcasted as many times as needed, and each pair of coordinates in X can also be broadcasted as many times as needed.

The result: each pair of coordinates in X is broadcasted 5 times so they can be subtracted from each pair of coordinates in the batch. And the batch is broadcasted 1500 times so that each pair of coordinates in X can be subtracted from it.

Looking at each of those statements visually:

Each pair of coordinates in X is broadcasted 5 times so they can be subtracted from each pair of coordinates in the batch

The batch x is broadcasted 1500 times so that each pair of coordinates in X can be subtracted from it.

With the understood, I can now continue with the batched implementation of the algorithm. With the correct shapes, thanks to adding unit axes, we can create a batched distance function:

def dist_b(a,b): return (((a[None]-b[:,None])**2).sum(2)).sqrt()
dist_b(x,X).shape
torch.Size([1500, 5])

We now have 5 distances for each of the 1500 items in the dataset.

dist_b(x,X)
tensor([[ 0.000,  4.521,  3.754,  6.305,  3.483],
        [ 4.521,  0.000,  7.421,  6.148,  2.170],
        [ 3.754,  7.421,  0.000,  5.518,  5.524],
        ...,
        [21.305, 25.769, 18.724, 23.553, 24.152],
        [21.850, 26.264, 19.083, 23.714, 24.568],
        [21.958, 26.246, 18.899, 23.144, 24.423]])

The first row are the distances between the first coordinate pair in X and each of the coordinate pairs in the batch. The second row contains distances between the second coordinate pair in `X and each of the batch coordinate pairs. And so on an so forth for 1500 rows. Each with 5 distances representing the distances to the batch items.

We pass this tensor into our gaussian and get back our weights.

weight = gaussian(dist_b(x, X), 2.5)
weight, weight.shape
(tensor([[    0.160,     0.031,     0.052,     0.007,     0.060],
         [    0.031,     0.160,     0.002,     0.008,     0.109],
         [    0.052,     0.002,     0.160,     0.014,     0.014],
         ...,
         [    0.000,     0.000,     0.000,     0.000,     0.000],
         [    0.000,     0.000,     0.000,     0.000,     0.000],
         [    0.000,     0.000,     0.000,     0.000,     0.000]]),
 torch.Size([1500, 5]))
weight[:5]
tensor([[0.160, 0.031, 0.052, 0.007, 0.060],
        [0.031, 0.160, 0.002, 0.008, 0.109],
        [0.052, 0.002, 0.160, 0.014, 0.014],
        [0.007, 0.008, 0.014, 0.160, 0.038],
        [0.060, 0.109, 0.014, 0.038, 0.160]])

Looking at the first 5 rows of our weights we have a square matrix—the weights between the first 5 points (i.e. the points in our batch). From row 6 we have the weights from these 5 points to point 6.

Technically we could have a batch size of 1500 and the weights in full would be a square matrix.

Now for the fun part! Understanding broadcasting so we can perform the weighted average, which starts with an elementwise multiplication betwee the weights and the data points.

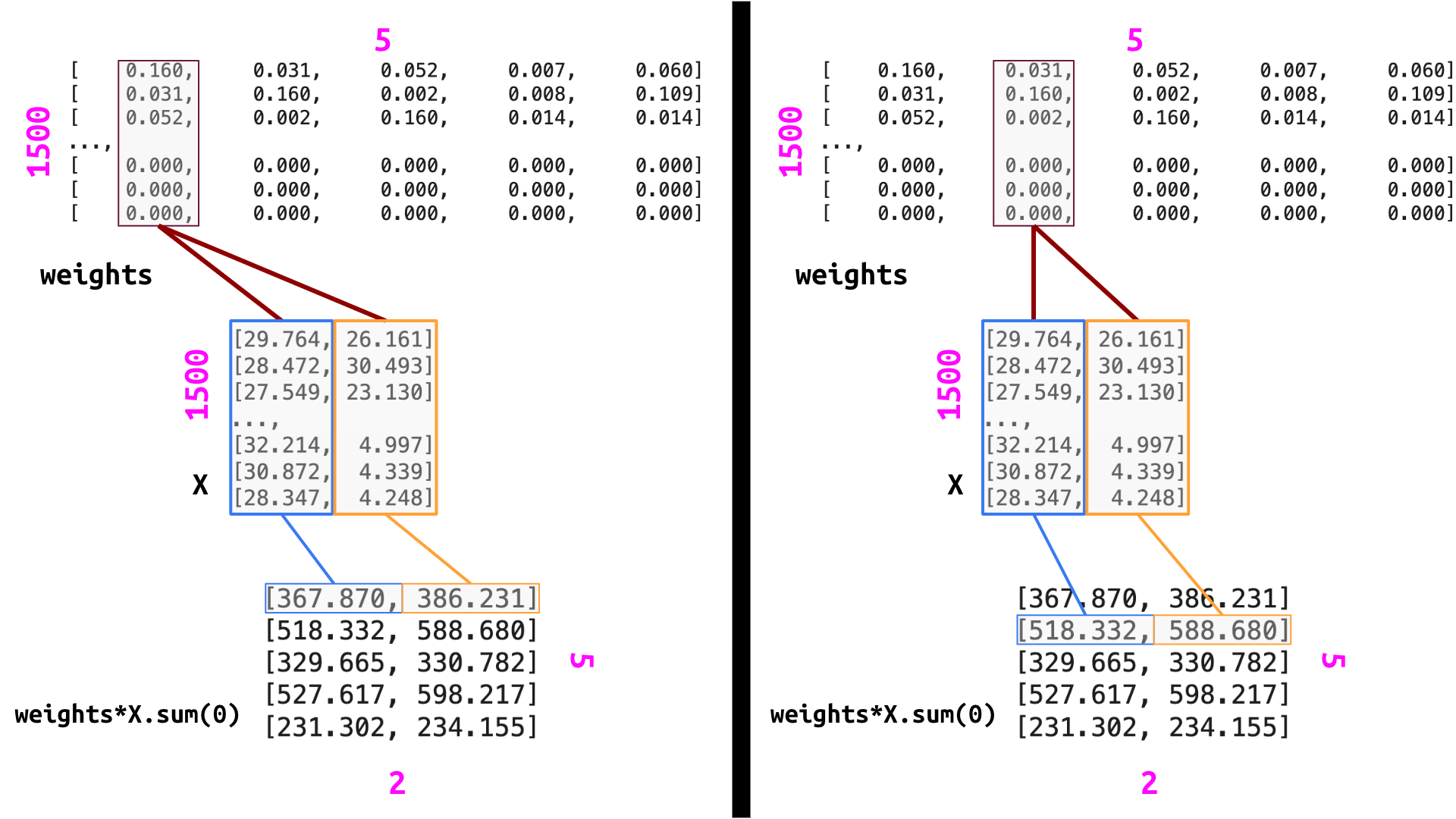

Conceptually we want something like this (example shown for the first two batch items’ weights)

Multiplying weights by X and summing down the columns to get a pair of coordinates

weight.shape,X.shape
(torch.Size([1500, 5]), torch.Size([1500, 2]))

The last dimension of each tensor is not compatible (5 and 2). We need to introduce a unit axis so that we can broadcast the 5 batch items to each of the 1500 coordinate pairs.

We’ll again start by “just making the dimensions work”, adding a unit axis to the end of weight and the beginning of X. Scanning the dimensions left to right: 1 and 2 are compatible, 5 and 1 are compatible, 1500 and 1500 are compatible.

weight[...,None].shape, X[:,None].shape
(torch.Size([1500, 5, 1]), torch.Size([1500, 1, 2]))
(weight[...,None]*X[:,None]).shape
torch.Size([1500, 5, 2])

We’ll sum down the first dimension to get 5 pairs of coordinate.

(weight[...,None]*X[:,None]).sum(0)
tensor([[296.880, 291.612],
        [476.489, 514.066],
        [140.263, 134.432],
        [278.256, 307.251],
        [577.373, 615.003]])

The first pair of coordinates [296.880, 291.612] are the sum of the first pair of elementwise products in each set of 5 batched items in each of the 1500 rows.

(weight[...,None]*X[:,None])
tensor([[[    4.750,     4.175],
         [    0.926,     0.814],
         [    1.539,     1.352],
         [    0.197,     0.174],
         [    1.799,     1.581]],

        [[    0.886,     0.948],
         [    4.544,     4.866],
         [    0.055,     0.059],
         [    0.221,     0.237],
         [    3.117,     3.338]],

        [[    1.424,     1.196],
         [    0.054,     0.045],
         [    4.396,     3.691],
         [    0.385,     0.323],
         [    0.383,     0.321]],

        ...,

        [[    0.000,     0.000],
         [    0.000,     0.000],
         [    0.000,     0.000],
         [    0.000,     0.000],
         [    0.000,     0.000]],

        [[    0.000,     0.000],
         [    0.000,     0.000],
         [    0.000,     0.000],
         [    0.000,     0.000],
         [    0.000,     0.000]],

        [[    0.000,     0.000],
         [    0.000,     0.000],
         [    0.000,     0.000],
         [    0.000,     0.000],
         [    0.000,     0.000]]])
(weight[...,None]*X[:,None])[:, 0,:]
tensor([[    4.750,     4.175],
        [    0.886,     0.948],
        [    1.424,     1.196],
        ...,
        [    0.000,     0.000],
        [    0.000,     0.000],
        [    0.000,     0.000]])
(weight[...,None]*X[:,None])[:, 0,:].sum(0)
tensor([296.880, 291.612])

Looking at this visually:

Elementwise multiplication of weight[...,None] and X[None] followed by sum(0) down the columns

num = (weight[...,None]*X[:,None]).sum(0)
num.shape
torch.Size([5, 2])
num
tensor([[296.880, 291.612],
        [476.489, 514.066],
        [140.263, 134.432],
        [278.256, 307.251],
        [577.373, 615.003]])

Since we are performing an elementwise multiplication follow by a sum, we can use Einstein Summation!

torch.einsum('ij,ik->jk', weight, X)
tensor([[296.880, 291.612],
        [476.489, 514.066],
        [140.263, 134.432],
        [278.256, 307.251],
        [577.373, 615.003]])

Similary, we can also use matrix multiplication:

weight.T@X
tensor([[296.880, 291.612],
        [476.489, 514.066],
        [140.263, 134.432],
        [278.256, 307.251],
        [577.373, 615.003]])

To get our weighted average, we divide by the sum of weights.

div = weight.sum(0, keepdim=True).T
div.shape
torch.Size([5, 1])

We want to perform an elementwise division (each coordinate needs to be divided by the sum of weights) so we keepdim.

div
tensor([[10.558],
        [17.315],
        [ 5.167],
        [10.983],
        [21.347]])
num/div
tensor([[28.118, 27.619],
        [27.519, 29.689],
        [27.145, 26.016],
        [25.334, 27.974],
        [27.047, 28.810]])

Wrapping this into a new meanshift function. Each step now performs batched calculations.

def meanshift(data, bs=500):
    n = len(data)
    X = data.clone()
    for it in range(5):
        for i in range(0, n, bs):
            s = slice(i, min(i+bs,n))
            weight = gaussian(dist_b(X[s], X), 2.5)
            div = weight.sum(0, keepdim=True).T
            X[s] = weight.T@X/div
    return X

We can now utilize the GPU (since we’re doing batched calculations)

data = data.cuda()
X = meanshift(data).cpu()
%timeit -n 5 _=meanshift(data, 1250).cpu()
5.37 ms ± 43.1 µs per loop (mean ± std. dev. of 7 runs, 5 loops each)

Using the GPU we cut the execution time from 1.5 seconds to 6 milliseconds to achieve the same result.

1500/6
250.0
plot_data(centroids, X, n_samples)

If we perform the unbatched calculation using the GPU, we don’t see this speed up.

def meanshift(data, n=5):
    X = data.clone()
    for it in range(n): one_update(X)
    return X
%time X = meanshift(data.cuda()).cpu()
CPU times: user 1.33 s, sys: 969 µs, total: 1.33 s
Wall time: 1.33 s

Closing Thoughts

Implementing mean shift clustering become an exercise in understanding broadcasting! The weighted average (elementwise multiplication followed by a summation down an axis) is well suited for broadcasting, Einstein Summation and matrix multiplication. Seeing the relationships between dimensions, and seeing how adding unit axes in a particular spot to allow for broadcasting gave me a deeper understanding of how tensor calculations work. We also saw a clear example of how the GPU only gives you a speedup if you perform batch operations on it.

I’m trying to grow my YouTube channel so if you’re interesting in this type of content, please subscribe!
