Calculating the Ratio of Corners in an Image

In this blog post I use the OpenCV library to calculate the ratio of the sum of non-zero corner pixels to the sum of non-zero original pixels of an image. The serif font has consistently larger ratios than the sans serif font.

Background

In this notebook I’ll walk through an algorithm suggested by Claude to distinguish one typeface (like display) from another (like serif) in which we calculate the ratio of the number of corners to number of pixels in a text image.

This algorithm is part of my exploration of non-ML baselines to classify text images into various typeface categories (e.g., “humanist sans,” “grotesque sans,” “script,” “display,” etc.). Once the non-ML baseline is established, I’ll train a neural network for this task. This is one of many notebooks in my TypefaceClassifier project series.

import cv2
import numpy as np
import pandas as pd
from google.colab.patches import cv2_imshow

Load Image and Binarize It

As usual, we load the image and binarize it so it’s easier to distinguish between background (black pixels) and text (white pixels).

path = 'serif-76px.png'
img = cv2.imread(path, cv2.IMREAD_GRAYSCALE)
_, binary = cv2.threshold(img, 0, 255, cv2.THRESH_BINARY_INV + cv2.THRESH_OTSU)
binary

ndarray (512, 512)

array([[0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       ...,
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0]], dtype=uint8)

Detect Corners

I’ll use the Harris Corner Detection algorithm to identify the pixels at which there exists a corner in the image.

corners = cv2.cornerHarris(binary, blockSize=2, ksize=3, k=0.04)

Dilating the corners makes them brighter

corners = cv2.dilate(corners, None)

corners.shape

(512, 512)

corners[:5]

array([[0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.],
       [0., 0., 0., ..., 0., 0., 0.]], dtype=float32)

thresholding the pixels so that pixels with a corners value above 1% of the maximum are set to white (255).

_, corners = cv2.threshold(corners, 0.01 * corners.max(), 255, 0)

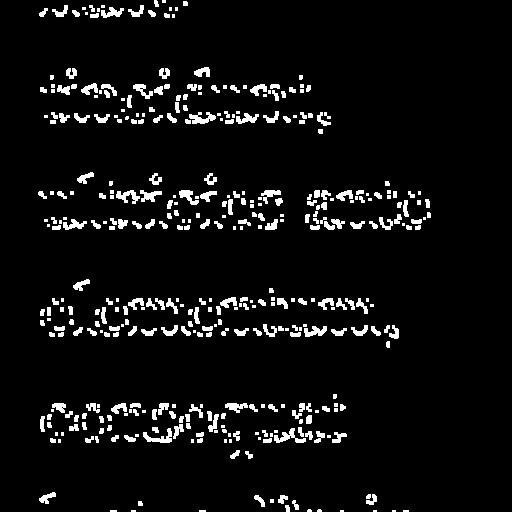

The end result is a set of pixels that are the locations of corners in the image. Notice how the straight segments of the letters are (correctly) not identified as corners, while curves are identified as corners.

cv2_imshow(corners)

Calculating the Ratio of Corner Pixels to Total Pixels

The number of corners are the number of corners pixels that have a value greater than 0.

np.sum(corners > 0)

15127

The ratio of number of corners to pixels in an image is given as the ratio of the number of corners pixels greater than 0 divided by the number of binary pixels greater than 0. In this case, 67% of the pixels represent corners.

np.sum(corners > 0), np.sum(binary > 0), np.sum(corners > 0) / np.sum(binary > 0)

(15127, 22475, 0.6730589543937708)

For a different image, notably display (sans serif) text of the same font-size (76px), this ratio is considerably smaller (39% < 67%).

path = 'display-76px.png'
img = cv2.imread(path, cv2.IMREAD_GRAYSCALE)
_, binary = cv2.threshold(img, 0, 255, cv2.THRESH_BINARY_INV + cv2.THRESH_OTSU)
binary

ndarray (512, 512)

array([[0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       ...,
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0],
       [0, 0, 0, ..., 0, 0, 0]], dtype=uint8)

corners = cv2.cornerHarris(binary, blockSize=2, ksize=3, k=0.04)
corners = cv2.dilate(corners, None)
_, corners = cv2.threshold(corners, 0.01 * corners.max(), 255, 0)
np.sum(corners > 0), np.sum(binary > 0), np.sum(corners > 0) / np.sum(binary > 0)

(13650, 34992, 0.3900891632373114)

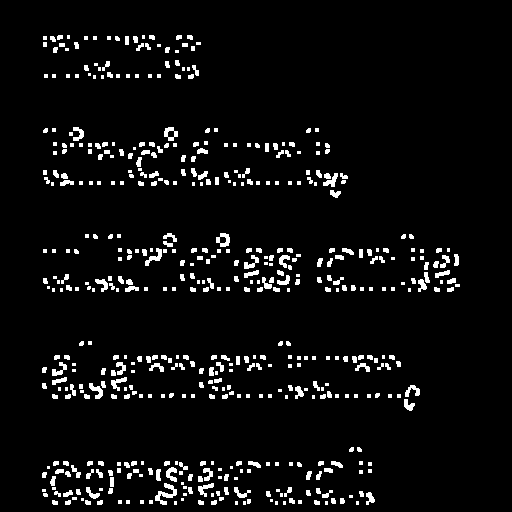

Visually, you can see how much fewer corners are detected in this image than in the image with serif text—this makes sense! Serifs are intricate flourishes added to the ends of letters and contain more changes in stroke (corners).

cv2_imshow(corners)

Calculating Contour Ratio for Different Images

I’ll now wrap the code above into a function and apply it to a wide variety of images (of two typefaces, display and serif and 8 different font sizes). I expect, on average, the serif images to have a higher corner ratio than display images, since serifs introduce more corners.

def corner_ratio(path):
    img = cv2.imread(path, cv2.IMREAD_GRAYSCALE)
    _, binary = cv2.threshold(img, 0, 255, cv2.THRESH_BINARY_INV + cv2.THRESH_OTSU)

    corners = cv2.cornerHarris(binary, blockSize=2, ksize=3, k=0.04)

    corners = cv2.dilate(corners, None)
    _, corners = cv2.threshold(corners, 0.01 * corners.max(), 255, 0)
    corners = np.uint8(corners)

    num_corners = np.sum(corners > 0)
    total_pixels = np.sum(binary > 0)

    corner_ratio = num_corners / total_pixels if total_pixels > 0 else 0

    return corner_ratio

On average, images with serif fonts have more corners present.

szs = [8, 18, 24, 36, 76, 240, 330, 420]
ts = ['display', 'serif']
res = []

for t in ts:
    for sz in szs:
        image_path = f"{t}-{sz}px.png"
        sr = corner_ratio(image_path)
        res.append([t, sz, sr])

res = pd.DataFrame(res, columns=['typeface', 'font-size', 'corner-ratio'])
res.groupby('typeface')['corner-ratio'].agg(['mean', 'median'])

	mean	median
typeface
display	0.989564	0.734144
serif	1.287083	1.134465

This trend holds up for each font size:

res.sort_values(by='font-size')

	typeface	font-size	corner-ratio
0	display	8	2.827288
8	serif	8	2.874287
1	display	18	1.784839
9	serif	18	2.573949
2	display	24	1.609162
10	serif	24	2.192324
3	display	36	1.078198
11	serif	36	1.595871
4	display	76	0.390089
12	serif	76	0.673059
5	display	240	0.113082
13	serif	240	0.173800
6	display	330	0.061339
14	serif	330	0.123992
7	display	420	0.052513
15	serif	420	0.089383

Final Thoughts

Similar to the contour ratio algorithm there is a clear and consistent difference in value between serif and sans serif fonts for this corner ratio algorithm, making this a good candidate for distinguishing between typefaces.

This is also another relatively simple algorithm, and each step can be easily visualized.

I hope you enjoyed this blog post! Follow me on Twitter @vishal_learner.
